公司基本資料信息
|
|||||||||||||||||||||||||||

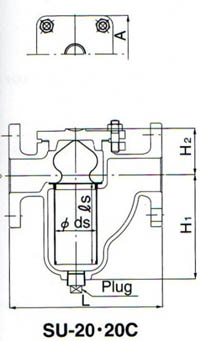

| SU-20過濾器尺寸及重量表 | |||||||||||
| 口徑 | L | H1 | H2 | H3 | A | B | 濾網直徑 | 濾網 長度 | 堵頭 尺寸 | 重量 | |
| SU-20 | SU-20S | ||||||||||
| DN20 | 175 | 97.5 | 54 | 107.5 | 87 | 131 | 40 | 70 | R3/8 | 5 | 5.6 |
| DN25 | 175 | 97.5 | 54 | 107.5 | 87 | 131 | 40 | 70 | R3/8 | 6.1 | 6.7 |
| DN32 | 230 | 146 | 67.5 | 151 | 115 | 179 | 64.5 | 108 | R3/4 | 11.1 | 12.5 |
| DN40 | 230 | 146 | 67.5 | 151 | 115 | 179 | 64.5 | 108 | R3/4 | 11.8 | 13.2 |
| DN50 | 230 | 156 | 69.5 | 153 | 115 | 179 | 64.5 | 120 | R3/4 | 12.4 | 13.8 |
| DN65 | 290 | 182 | 70 | 153.5 | 134 | 208 | 77 | 140 | R1 | 18.7 | 20.8 |
| DN80 | 300 | 197.5 | 88.5 | 189 | 185 | 249 | 90 | 160 | R1 | 23.8 | 27.1 |
| DN100 | 365 | 262 | 118.5 | 253 | 220 | 334 | 120 | 210 | R11/4 | 41.3 | 48.6 |
| DN125 | 425 | 340.5 | 134.5 | 269 | 248 | 362 | 140 | 270 | R11/2 | 61.4 | 69.4 |
| DN150 | 505 | 378 | 158.5 | 293 | 305 | 414 | 175 | 300 | R2 | 98.4 | 108.3 |
點擊圖片查看原圖
